Products -Terminal Insertion



LAZPIUR S.A. headquartered in Bergara Spain and is involved in the design and manufacture of fully automated mechanized assembly processes with high productivity. LAZPIUR is specialized in providing "turnkey" of standard machines and / or customized for the following industries:


The services and products of Lazpiur are based on the latest generation of advanced technology to ensure the satisfaction of customer needs and to obtain a proper cost-benefit in a global market. The 70% of the turnover of the company is directly linked to the automotive sector.

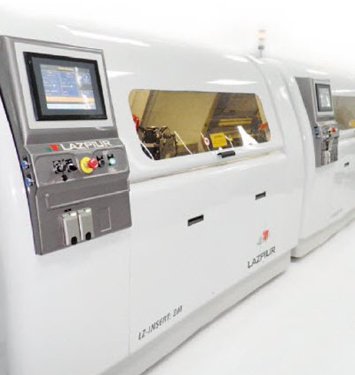

Terminal Insertion Machine

Features
Insertion rate up to 5 comp / sec (0,2 sec / comp)
Up to 3 insertion heads
Active anvil for PCB support
Pin insertion verifification
Force monitoring on all the componentsi

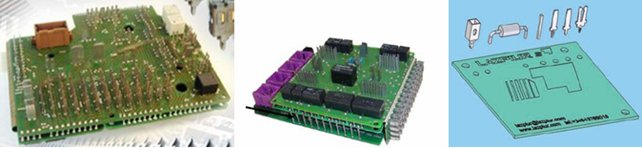

Male / female Terminals
Short & Long Pins
In-line solution
SMEMA interface
Max PCB dimension: 350 x 350 mm
4 different angles programmable(0°, 90°, 180°, 270°)
Insertion process : through-hole / press fit / pin inpaste
Vision system (optional)

Quick change head system (in less than 2 min).


Product Information (Download)
